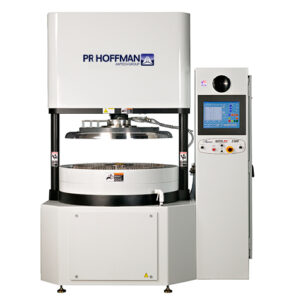

Servo RS 3100
Counter-rotating bottom plate 4-way configuration
Plates
- Serrated cast iron for lapping
- Stainless steel for polishing or fixed abrasive lapping
Stainless steel roller pins on ring and center sprockets
Digital gauge
- Thickness control for lapping
- Crash protection for lapping and polishing
Automatic Lapping Control (ALC)
Water heated and cooled bottom plate temperature control system
Slurry system
- Recirculating slurry
- Multiple or high-capacity peristaltic feed heads and distribution lines
- Centrifuge system
- Slurry tank heating and cooling system
- Variety of customizable configurations available
Chemical injection system
- Auxiliary peristaltic pump and tank system
- Chemical injection pump controlled by process recipe
Wide variety of accessories available
Technical Specifications
Model 3100 – Technical Data |
|||
PLANETARY MOTION CONFIGURATION | 3-WAY | 4-WAY |
|
CARRIERS | CARRIER TEETH | 60T Sprocket | |
NUMBER OF CARRIERS | 5 | ||
MAXIMUM PART CIRCLE | Ø10.9" [Ø277mm] |
||
MINIMUM RECOMMENDED PART THICKNESS | .010" [.254mm] |
||
PLATE DIMENSIONS | INNER DIAMETER | Ø10.5" [Ø267mm] |
|
OUTER DIAMETER | Ø31.4" [Ø798mm] |
||
TRACK WIDTH | 10.45" [265mm] |
||
DOWN FORCE RANGE | 15-530 lbs [6.8-240 kg] |
||
DRIVE POWER | TOP PLATE | 5 hp [3.7 kw] |
|
BOTTOM PLATE | N/A | 5 hp [3.7 kw] |
|
CENTER GEAR | 1 hp [.75 kw] |
||
RING GEAR | 1 hp [.75 kw] |
||
MAXIMUM SPEEDS | TOP PLATE | 70 rpm | |
BOTTOM PLATE | N/A | 70 rpm | |
CENTER GEAR | 70 rpm | ||
RING GEAR | 50 rpm | ||
MACHINE DIMENSIONS | WIDTH | 74" [188cm] |
|
DEPTH | 44" [110cm] |
||
HEIGHT | 93.5" [238cm] |
||
MACHINE WEIGHT | 4400 lbs [2000 kg] | 4650 lbs [2110 kg] |
|
