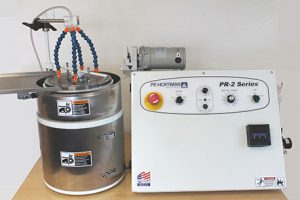

PR – 2

Equipment

• 32 tooth carrier configuration
• Smooth cast iron plates
• Stationary bottom plate
• Floating, non-rotating top plate
• Cast iron ring and center gears
• Driven by single variable speed motor
• Mechanical transmission drives the outer ring gear and center sun gear at fixed gear ratio
• Overrunning clutch provides soft stop at end of process cycle and allows operator to manually rotate ring and center gears
• Bottom plate height adjustment mechanism
• Post and hanger for storing top plate when machine is not running

Control console

• Illuminated start/stop selector switch, master speed control knob, manual or timer control selector switch, emergency stop pushbutton and main disconnect selector switch
• Digital process cycle timer control

Top plate manually raised and lowered onto parts being processed

One year warranty
