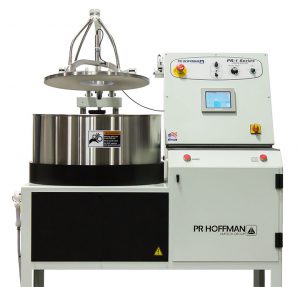

PR – 1

Equipment

• Choice of four carrier (work holder) configurations: (13) 32 tooth, (8) 50 tooth, (5) 66 tooth, or (5) 85 tooth
• Smooth cast iron plates
• Stationary bottom plate
• Floating, non-rotating top plate
• Cast iron ring and center gears
• Driven by single variable speed motor
• Mechanical transmission drives the outer ring gear and center sun gear at fixed gear ratio
• Bottom plate height adjustment mechanism

Control console

• Illuminated start/stop selector switch, master speed control knob, manual or timer control selector switch, emergency stop pushbutton and main disconnect selector switch
• Digital timer function, machine speeds, and motor loads are incorporated into touch screen operator interface

Provisions for raising and lowering the top plate

• Top plate handles and a post and hanger for storing the top plate on the 32T, 50T and 66T configurations
• Top plate lifting device operated by 2-hand safety control pushbuttons and pneumatic system on the 85T configuration

One year warranty
